Marble Floor Grinding Machine 2018 400mm Grinding Width
HW-G2 has a high motor rotation rate (1440rpm), so it works effectively and continuously for a long time. The overload protect elements are Schneider, which avoids leakage and phrase protection.
Parameters
| Model | HW-G2 |
| Voltage: | 380V three phrase |
| Power output: | 4KW,5.5hp |
| Motor Speed: | 1400rmp |
| Frequency: | 50/60HZ |
| Current: | 13A |
| Grinding Width: | 400mm/15.7” |
| Grinding Pressure: | 69KG/152lbs |
| Additional Weight: | N/A |
| Dust Port: | Φ50mm |
| NO.of grinding plate | Single one |
| Diamond Pad Holder: | 8 Pieces |
| Machine L*W*H: | 760*420*1200mm |
| Package L*W*H: | 800*450*1000mm |
| Net Weight: | 95KG/205lbs |
Advantages
The floating dust cover fellows up and down of uneven floor;
It is driven by motor, which has a great productivity for grinding
Quick change of diamond pad, just with a hammer;
Ergonomic working posture
Easy for machine maintenance
Closer Look

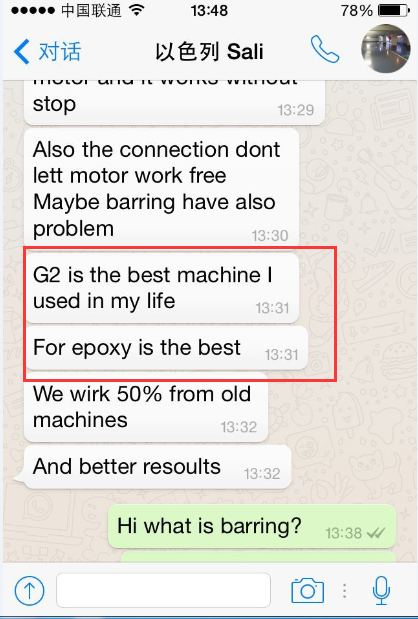

Feedback from customer
Production Flow
After Sell Service
- One year of warranty for machine.
- In the warranty period, the spare parts are sent by DHL, which is paid by Honway Company.
- Out of warranty period, the spare parts are sent by DHL, which is paid by customer.
- Honway always store the spare parts of old models, in case that the machine needs repair in future.
- All gear boxes are tested 48 hours before it leaves factory.
- We could send the technologists to distributors, for training the after sell service staff and maintenance issues.
FAQ
Q: How about the floating cover of HW-G2?
A: The floating cover follow floor up and down, preventing dust from entering work site.
Q: If the machine vibrates when it works?
A: HW-G2 has a chassis which is made of triangle structure. It is more stable and less anti-vibrate. Besides, the machine frame is made of steel tubes, not steel plate, so it could support machine more and decrease vibration.
Q: What is the brand of motor and electrical element?
A:The motor is from the old motor factory over 50 years. Honway uses it since the factory is built up. The motor is made up of pure copper coils and the fault rate is below 0.5%; The electrical elements are Schneider, world brand. The brand of buttons is Dehli, famous China brand.
