Using a stable transmission device, the front fuselage is connected to gear box directly, so the motor power can be 100% transmitted. When motor runs in low speed, the transmission device enhances the torque of the rotating shaft, which improves the grinding and polishing effect in different floors.
It is not only applied for concrete, but also for terrazzo, marble and granite floor.
For pre-treating and leveling the concrete surface before epoxy coating.
Removing painting, coating, epoxy, urethane, glue, polyurethane, mastic.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 27.0A | 15.6A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 10hp(7.5KW) | 10hp(7.5KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 600mm | 600mm |
| Disc Dianeter | 320mm*4plate | 320mm*4plate |
| N.W | 265KG | 265KG |
| Water Tank | 30L | 30L |
| Dimension | 930*600*950mm | 930*600*950mm |
Features
Middle size among the square plate series for grinding and polishing middle area.
Gear box is made of aluminum alloy, light but solid.
Water tank for wet grinding and vacuum cleaner for dry grinding.
Honway adopts famous brand for bearing, that is Japan NSK and China C&U.
Product Details:

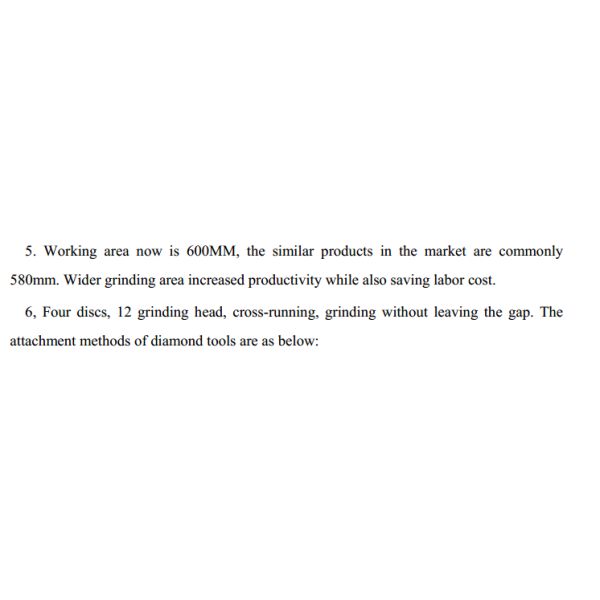

HW-G5 is a square design concrete grinding machineIt is driven by gears and has four grinding plates. The grinding plates counter rotates, but would not leave trace on floor. 600mm grinding width is wider than 580mm which is common in the market.
Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer for floor scarifying & grinding & polishing machine in China. We are located in Changsha city which is well known as the capital of construction machinery in China. This city has the abundant supply of machinery engineers, workers, technique, workcraft, etc. Our company develops here and builds up as a manufacturing the machines for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered by DHL.
- The CD and operation manual is sent with machine to guide the installation process works and repair problems.
- All machines are tested, and the testing record will be kept, before it leaves factory.
- If the customers visit our factory, we could provide the training lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
